Compression Line Tap DKHO

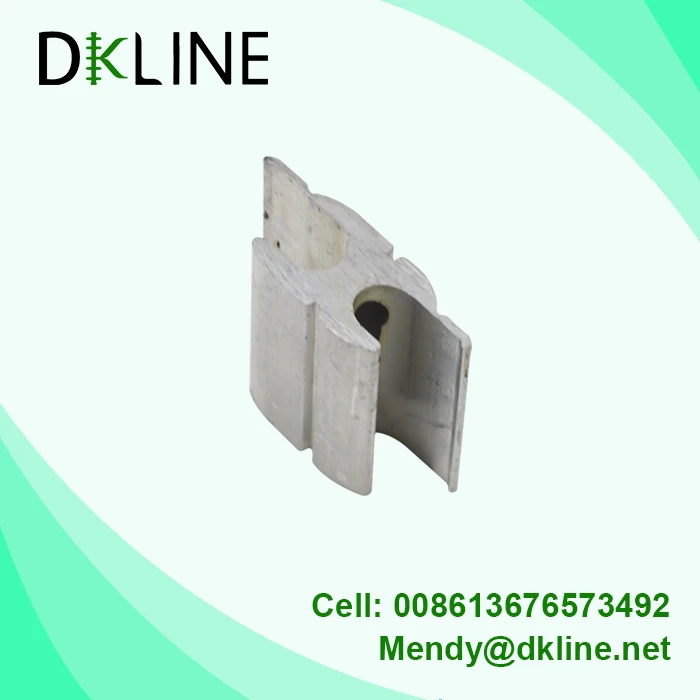

ALUMIINIUM TAP CONNECTOR

DESCRIPTION

The Aluminium tap connector is a non-tension connector, it usually used in MV and LV overhead distribution line for non-tension splice, service drops, cable branch and grounding installation.

The H tap connector suit for made from conductor-grade soft aluminium for connection combinations of Aluminium to Aluminium or Aluminium to Copper conductor.

The DKLINE aluminium tap connector slip strength is 40%-65% of calculative tensile strength of applied conductor.

The DKLINE Aluminium to Aluminium PG clamp will not reduce the electric capacity of the conductor.

The DKLINE Aluminium to Aluminium PG clamp no greater than the equivalent length of the reference conductor.

The temperature rise of the surface of joint no higher than the reference conductor.



DKLINE HYDRAULIC CONDUCTOR CONNECTOR

FEATURES

■ Wide range for different size conductor

■ High slip strength

■ Large contact area

■ Pre-filled oxide inhibitor;

■ Small size and light weight.



DKLINE RUN AND TAP CONNECTOR

TECHNICAL PARAMETERS

Material and Construction
Material	Conductor grade soft aluminium
Mechanical Strength
Slip strength	40%-65% of the calculated tensile strength reference conductor
Standard
Testing	ANSI C119.4
Producing Capacity
Producing Capacity	500000pcs/month



DKLINE AL-CU COMPRESSION CLAMP

DATAS

Part No.

DKHO-100

DKHO-125

DKHO-150

DKHD-200

DKHD-250

DKHD-300

Groove

Groove

Groove

Groove

Groove

Groove

A

B

A

B

A

B

A

B

A

B

A

B

ACSR & Al alloy

#6 - #2

#6 - #2

#6 - 1/0

#6 - #2

#3 - 1/0

#6 - #2

1/0 - 2/0

#6 - #2

3/0 - 4/0

#6 - #2

#1 - 2/0

#1 - 2/0

Cu or Al

strand

#6-#4-#1-7STR

#6-#4-#1-7STR

#6 - 1/0

#6-#1 19STR

#3 3STR - 2/0

#6-#1 19STR

2/0 - 3/0

#6-#1 19STR

4/0

#6-#1 19STR

#1 3STR - 3/0

#1 3STR - 2/0

solid

#6-#4-#3-#1

#6-#4-#3-#1

#6 - 2/0

#6 - 1/0

#1 -2/0

#6 - 1/0

3/0 - 4/0

#6 - 1/0

250 -300

#6 - 1/0

2/0 - 4/0

2/0 - 3/0

mm2

16-35

16-35

16-60

16-35

25-70

16-35

60-85

16-35

85-120

16-35

50-85

50-80

Dia.

in

0.332 0.162

0.332 0.162

0.398 0.162

0.332 0.162

0.419 0.260

0.332 0.162

0.470 0.398

0.332 0.162

0.563 0.475

0.332 0.162

0.470 0.336

0.447 0.336

mm

8.4 4.1

8.4 4.1

10.1 4.13

8.4 4.1

10.6 6.61

8.4 4.1

11.9 10.1

8.4 4.1

14.3 11.7

8.4 4.1

11.9 8.51

11.4 8.5

Compact

ACSR

#6-#4 -#1

#6-#4 -#1

6 - 1/0

#6 - #1

#2 - 1/0

#6 - #1

2/0 - 3/0

#6 - #1

4/0 -266 18/1

#6 - #1

1/0 - 3/0

1/0 - 2/0

strand

#6-#4 #3-#1

#6-#4 #3-#1

#6- 2/0

#6 - #1

#2 - 2/0

#6 - #1

3/0

#6 - #1

4/0 -266

#6 - #1

1/0 - 3/0

1/0 - 3/0

Crimp Die

o

o

o

D3

D3

D3

Crimp No.

2

2

2

2

2

2



DKLINE H SHAPED CLAMP

DIMENSION

Part No.			DKHO-100	DKHO-125	DKHO-150	DKHD-200	DKHD-250	DKHD-300
Main dimensions	L	in	1.25	1.62	1.5	1.62	1.62	1.62
		mm	31.8	41.4	31.5	41.4	41.4	41.4
	W	in	1.12	1.15	1.13	1.45	1.47	1.42
		mm	28.4	29.2	27.8	36.8	37.3	36.1
	H	in	0.7	0.7	0.7	0.89	0.89	0.89
		mm	17.8	17.8	17.8	22.6	22.6	22.6





DKLINE OVERHEAD DISTRIBUTION CONNECTOR

FAQ:

1.What is the MOQ?

There are no MOQ limit in first order, and 100pcs in further.

2.Samples providing?

We are providing the samples by free, but need pay for the freight charge.

3.EPC material design and provide in lot?

Yes, we are supplying for LV and MV EPC material in lot many years.and have strong design team.

4.OEM available?

Yes, we are providing the anchor clamp as custom requirement.

5.Complete documents for tender?

Yes, whole set documents ready for submit.



DKLINE CONDUCTOR CONNECTOR

ADVANTAGE:

1.Full set quality control plan to confirm the quality;

2.ISO 9001, ISO 14001 and ISO 18001 factor;

3.Low cost low price.

4.Quick response, fast quotation.

5.Dependably after-sale service.

6.Full set documents to submit the tender.
