Parallel Groove Clamp APG

Aluminium to Aluminium PG Clamp

DESCRIPTION

The PG clamp is a non-tension connector, it used for parallel contact of Aluminium strand conductor, steel reinforced Aluminium conductor or jumper conductor of non-linear pole.

The Aluminum parallel groove clamp is consist of a aluminium upper jaw, a aluminium low jaw, and grade 8.8 fasteners.

The aluminium PG clamp have a slip strength of 10% of calculative tensile strength of applied conductor and

The DKLINE Aluminium to Aluminium PG clamp will not reduce the electric capacity of the conductor.

The DKLINE Aluminium to Aluminium PG clamp not greater than 1.1 times of the equivalent length of the reference conductor.

The temperature rise of the surface of joint no higher than the reference conductor.



DKLINE BOLTED TYPE ALUMINIUM PG CLAMP

FEATURES

■ Fast and easy installation;

■ Provided with an oxide-inhibiting compound intended to reduce metal oxidation;

■ Hot-forged aluminium to confirm the volume density;

■ Hot dip and stainless steel fasteners for choose;

■ wide range of conductor application.



DKLINE AL NON-TENSION CONNECTOR

TECHNICAL PARAMETERS

Material and Construction
Upper Jaw	Aluminium Alloy
Lower Jaw	Aluminium Alloy
Fasteners	Hot dip galvanized or stainless steel
Mechanical Strength
Failure load	10% of the reference conductor
Standard
Design	IEC 61284, DIN 48072
Testing	IEC 61284
Producing Capacity
Producing Capacity	300000pcs/month



DKLINE AL BOLTED NON-TENSION CONNECTOR

DATAS

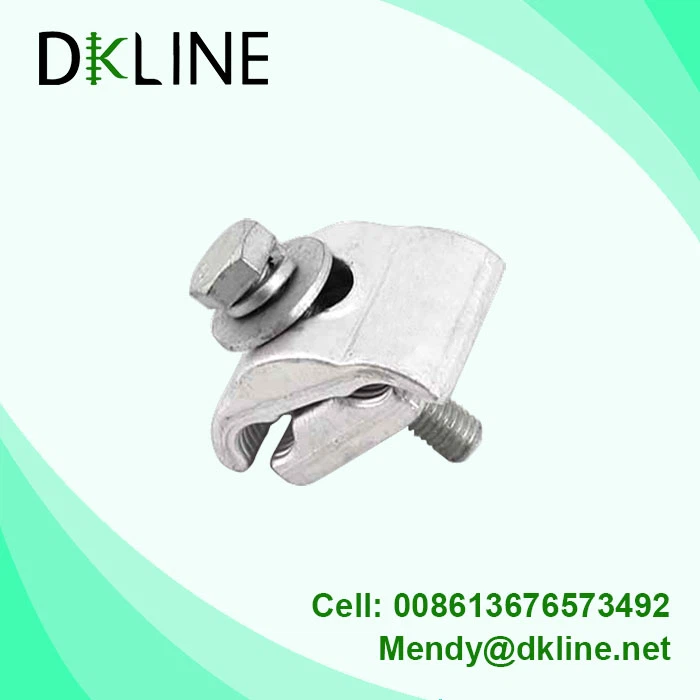

APG -A1	conductor	Diameter (Min.)	5.1
		Diameter (Max.)	10.5
		Cross section (Min.)	16
		Cross section (Max.)	70
		Material	Aluminium -Aluminium
	Bolts	No.	1
		Size	M8 x 40
APG -A2	conductor	Diameter (Min.)	6.3
		Diameter (Max.)	16.1
		Cross section (Min.)	25
		Cross section (Max.)	150
		Material	Aluminium -Aluminium
	Bolts	No.	1
		Size	M8 x 45
APG-B1	conductor	Diameter (Min.)	2.7
		Diameter (Max.)	8.1
		Cross section (Min.)	6
		Cross section (Max.)	35
		Material	Aluminium -Aluminium
	Bolts	No.	2
		Size	M6 x 35

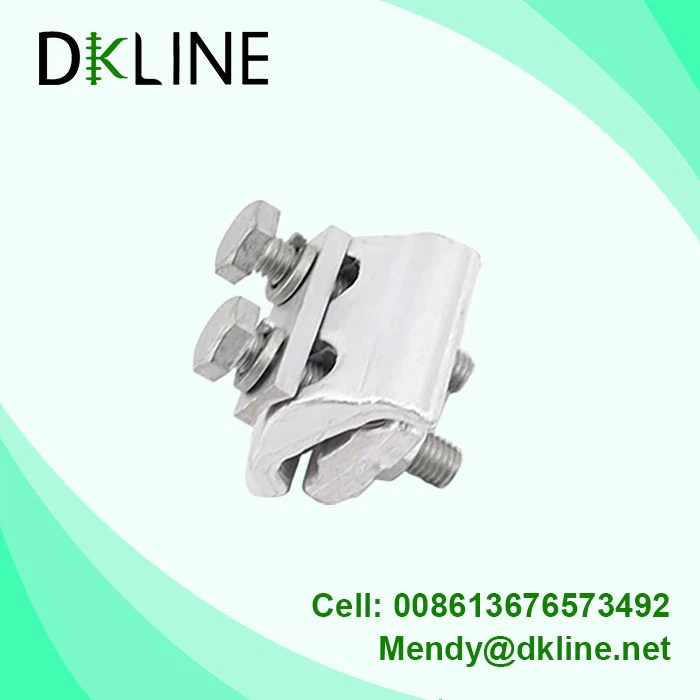

APG-B2	conductor	Diameter (Min.)	5.1
		Diameter (Max.)	10.5
		Cross section (Min.)	16
		Cross section (Max.)	70
		Material	Aluminium -Aluminium
	Bolts	No.	2
		Size	M8 x 45
APG-B3	conductor	Diameter (Min.)	6.3
		Diameter (Max.)	16.1
		Cross section (Min.)	25
		Cross section (Max.)	150
		Material	Aluminium -Aluminium
	Bolts	No.	2
		Size	M8 x 50
APG-B4	conductor	Diameter (Min.)	6.3
		Diameter (Max.)	20.3
		Cross section (Min.)	25
		Cross section (Max.)	240
		Material	Aluminium -Aluminium
	Bolts	No.	2
		Size	M10 x 60
APG-B5	conductor	Diameter (Min.)	7.5
		Diameter (Max.)	22.4
		Cross section (Min.)	35
		Cross section (Max.)	300
		Material	Aluminium -Aluminium
	Bolts	No.	2
		Size	M10 x 70

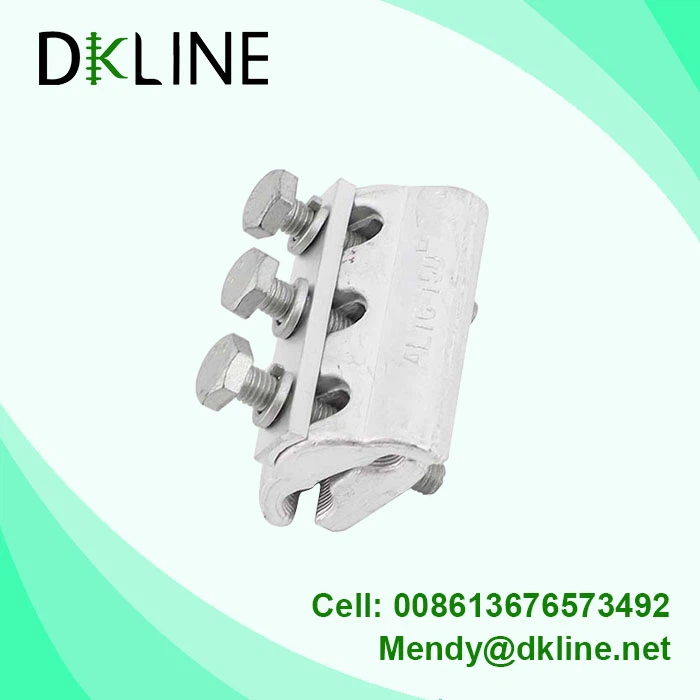

APG-C1	conductor	Diameter (Min.)	5.1
		Diameter (Max.)	10.5
		Cross section (Min.)	16
		Cross section (Max.)	70
		Material	Aluminium -Aluminium
	Bolts	No.	3
		Size	M8 x 45
APG-C2	conductor	Diameter (Min.)	6.3
		Diameter (Max.)	16.1
		Cross section (Min.)	25
		Cross section (Max.)	150
		Material	Aluminium -Aluminium
	Bolts	No.	3
		Size	M8 x 50
APG-C3	conductor	Diameter (Min.)	6.3
		Diameter (Max.)	20.3
		Cross section (Min.)	25
		Cross section (Max.)	240
		Material	Aluminium -Aluminium
	Bolts	No.	3
		Size	M10 x 60
APG-C4	conductor	Diameter (Min.)	7.5
		Diameter (Max.)	22.4
		Cross section (Min.)	35
		Cross section (Max.)	300
		Material	Aluminium -Aluminium
	Bolts	No.	3
		Size	M10 x 70



DKLINE HOT FORGED PG CLAMP

DIMENSION

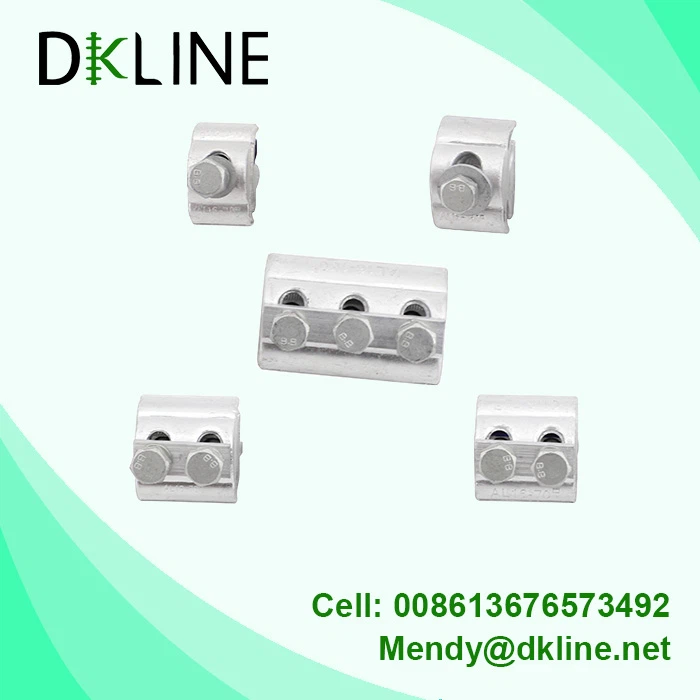

Part No.		APG-A1	APG-A2	APG-B2	APG-B3	APG-B4	APG-C1	APG-C2	APG-C3	APG-C4
Fig.		1	1	2	2	2	3	3	3	3
Main dimensions	L	25	30.5	40	49.5	63	60	69	90	104
	W	41.5	45	41.5	45	58	41.5	45	58	64
	H	45	50	50	55	66	50	55	66	76
No. of bolts		1	1	2	2	2	3	3	3	3
