Al/Al Parallel Groove Glamp JB

Baoding Sihedan Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of al/al parallel groove glamp jb in China. With abundant experience, we warmly welcome you to buy cheap al/al parallel groove glamp jb from our factory. Quality products and low price are available.



Aluminium to Aluminium PG Clamp

DESCRIPTION

The PG clamp is a non-tension connector, it used for parallel contact of Aluminium strand conductor, steel reinforced Aluminium conductor or jumper conductor of non-linear pole.

The Aluminum parallel groove clamp is consist of a aluminium upper jaw, a aluminium low jaw, and grade 8.8 fasteners.

The aluminium PG clamp have a slip strength of 10% of calculative tensile strength of applied conductor and

The DKLINE Aluminium to Aluminium PG clamp will not reduce the electric capacity of the conductor.

The DKLINE Aluminium to Aluminium PG clamp not greater than 1.1 times of the equivalent length of the reference conductor.

The temperature rise of the surface of joint no higher than the reference conductor.

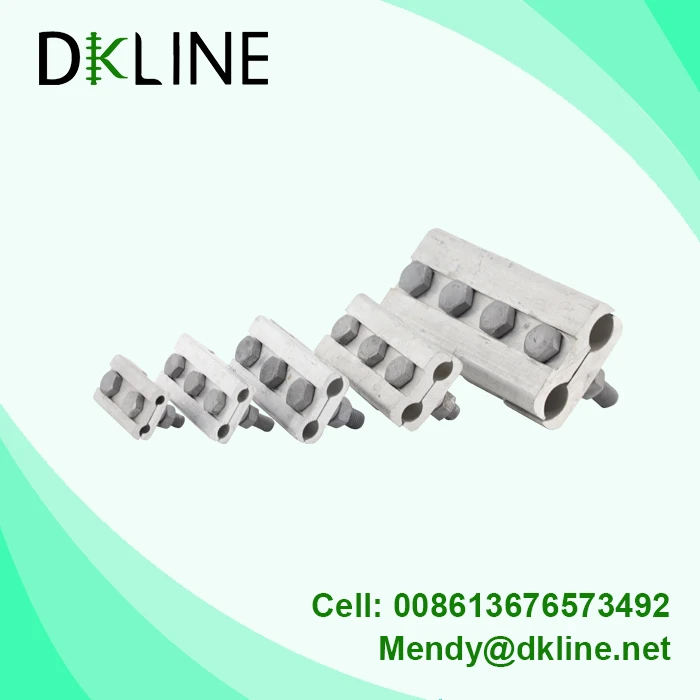

DKLINE BOLTED TYPE ALUMINIUM PG CLAMP

FEATURES

■ Fast and easy installation;

■ Provided with an oxide-inhibiting compound intended to reduce metal oxidation;

■ Hot dip and stainless steel fasteners for choose;

■ wide range of conductor application.

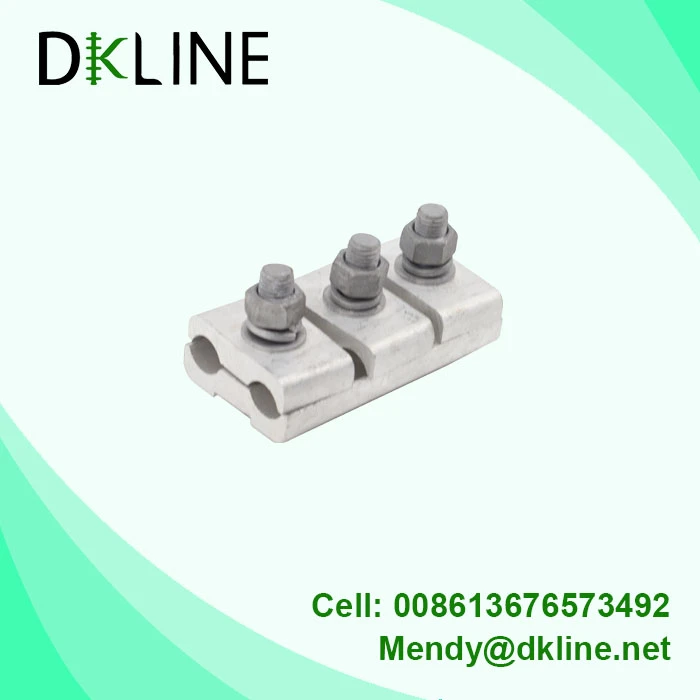

DKLINE AL NON-TENSION CONNECTOR

TECHNICAL PARAMETERS

Material and Construction
Upper Jaw	Aluminium Alloy
Lower Jaw	Aluminium Alloy
Fasteners	Hot dip galvanized or stainless steel
Mechanical Strength
Failure load	10% of the reference conductor
Standard
Design	IEC 61284, DIN 48072
Testing	IEC 61284
Producing Capacity
Producing Capacity	300000pcs/month



DKLINE AL BOLTED NON-TENSION CONNECTOR

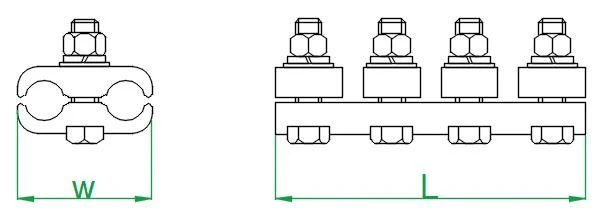

DATAS AND DIMENSION

Part No.	Application (mm2)	Main dimension (mm)			No.of bolt	Bolt size
JB-1	16-25	70	37	3.5	2	M10x45
JB-2	35-50	78	44	5	2	M12x45
JB-3	70-95	112	52	7	3	M12x45
JB-4	120-150	160	60	10	3	M16x65
JB-5	185-240	142	71	11	3	M16x70
JB--6	300-400	215	100	15.5	4	M20x80
JB--7	500-630	230	110	18.5	4	M20x90

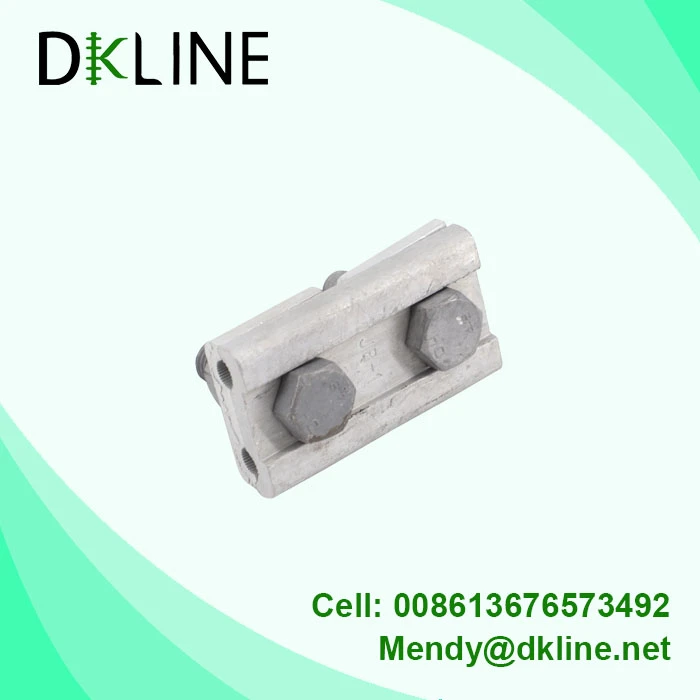

DKLINE BOLTED TYPE PARALLEL GROOVE CLAMP

FAQ:

1.What is the MOQ?

There are no MOQ limit in first order, and 100pcs in further.

2.Samples providing?

We are providing the samples by free, but need pay for the freight charge.

3.EPC material design and provide in lot?

Yes, we are supplying for LV and MV EPC material in lot many years.and have strong design team.

4.OEM available?

Yes, we are providing the anchor clamp as custom requirement.

5.Complete documents for tender?

Yes, whole set documents ready for submit.

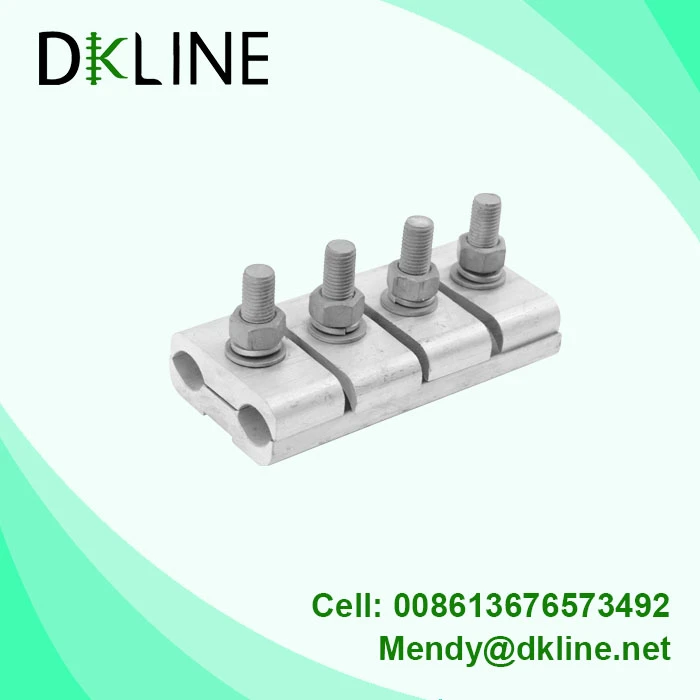

DKLINE BOLT TYPE PARALLEL GROOVE CONNECTOR

ADVANTAGE:

1.Full set quality control plan to confirm the quality;

2.ISO 9001, ISO 14001 and ISO 18001 factor;

3.Low cost low price.

4.Quick response, fast quotation.

5.Dependably after-sale service.

6.Full set documents to submit the tender.
