Insulator Side Tie

Side tie are intended to secure bare or jacketed distribution conductors in the side groove of vertically and horizontally mounted insulators. They provide an improved method of securing conductors compared to clamp-top insulators or had binds. Side Ties with pad are recommended for use with bare conductors. They provide superior abrasion protection for the conductor under all typesl of motion, including Aeolian vibration, galloping and sway.

Send Inquiry

Description

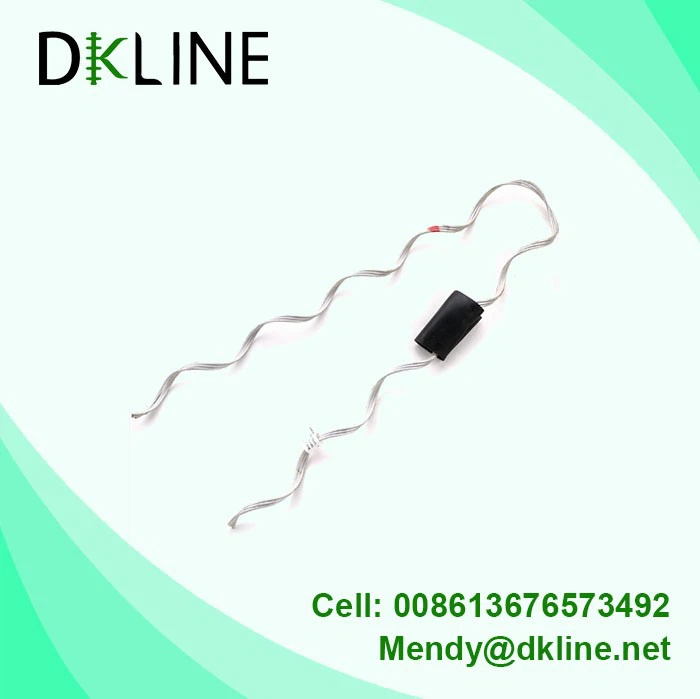

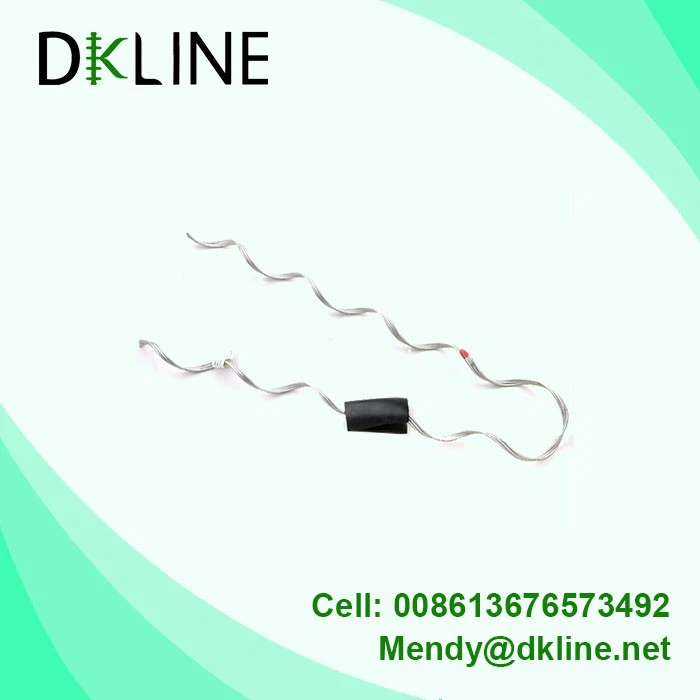

DKLINE Insulator side tie

DESCRIPTION

Double side ties are intended for securing bare conductors into the side groove of insulators. On vertically-mounted insulators at double crossarms or brackets, the double side ties can normally accommodate line angles of between 0degree and 80degree, with no more than a 40 degree angle at each insulator.

Double side ties will develop unbalanced and lift-off loads equivalent to , or in excess of, a hand tie over covered conductor. When installed with a pad on bare conductor, double side ties provide superior protection against abrasion and all types of conductor motion. The pad is a resilient cushion at the point of contact between conductor and insulator.

DKLINE Insulator side tie

FEATURES

■ High tensile strength

■ Corrosion resistant.

■ Good elasticity

■ Use under harsh conditions

DKLINE Insulator side tie

TECHNICAL PARAMETERS

Material and Construction
Material	Aluminum clad steel with an elastomer pad
Use an insulator range
Φ57mm , Φ73mm and Φ89mm
Applicable conductor
ACSR, All-Aluminum, Aluminum Alloy and etc ...
Color code
Blue,brown,orange,red,yellow,purple
