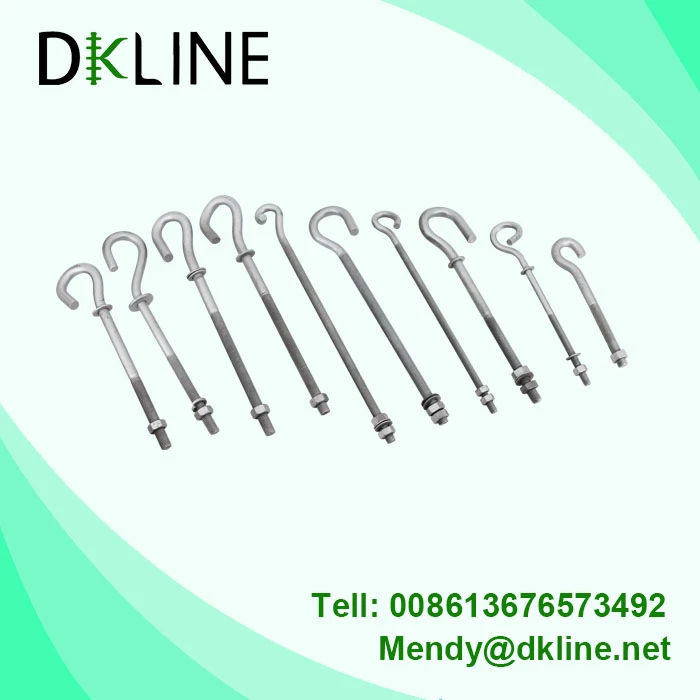

Pig Tail Bolts
A pigtail bolt is also known as a pigtail hook or pigtail eye bolt, it is designed to be used for connecting the dead end clamps and in some cases, it can also be used on the suspension clamp. N eye pigtail bolt can be used on both electric and communication pole lines. The reason why it is known as a pigtail bolt is because of its shape or design. The spiral end of the bolt resembles the tail of a pig. Pigtail bolts for power lines come in different shapes or designs. You will find some that are either square welded washers or round welded washers. Another variety of pigtail eye bolts have two forged points which are positioned on the right side of the hook. This design prevents the washer from falling off.
Description
DKLINE PIG TAIL HOOK BOLT
DESCRIPTION
The DKLINE pigtail bolt made of carton steel and hot dip galvanized according to ISO 1461.
The pigtail hook bolt usually used for supporting the pre insulated dead end clamps and suspension clamps in telecom poles and utility poles.
The pigtail bolt is also called pigtail hook bolt, pigtail screw, pigtail hook, hook pigtail eye bolt, hook bolt.
DKLINE HOOK BOLT
FEATURES
■ Hot dip galvanizing according to standard ISO 1461
■ Cone point thread end
■ smooth coating, easy to fasten a nut
■ Exact dimensions
■ short lead time.
DKLINE PIG TAIL SCREW
TECHNICAL PARAMETERS
|
Material and Construction |
|
|
Body |
H.D.G steel |
|
Producing Capacity |
|
|
Producing Capacity |
70000pcs per month |
| Grade |
| Grade | 4.8/6.8/8.8/10.9/12.9 |
DKLINE HOOK PIGTAIL EYE BOLT
DIMENSIONS:
|
Part No. |
Dimension(inch) |
||
|
M |
L |
Ls |
|
|
mm |
mm |
mm |
|
|
DK-ZWB14200 |
14 |
200 |
150 |
|
DK-ZWB14250 |
14 |
250 |
150 |
|
DK-ZWB14280 |
14 |
280 |
150 |
|
DK-ZWB14300 |
14 |
300 |
150 |
|
DK-ZWB16200 |
16 |
200 |
150 |
|
DK-ZWB16250 |
16 |
250 |
150 |
|
DK-ZWB16280 |
16 |
280 |
150 |
|
DK-ZWB16300 |
16 |
300 |
150 |
|
DK-ZWB16350 |
16 |
350 |
150 |
|
DK-ZWB16400 |
16 |
400 |
150 |
|
DK-ZWB16450 |
16 |
450 |
150 |
|
DK-ZWB16500 |
16 |
500 |
150 |
|
DK-ZWB20250 |
20 |
250 |
150 |
|
DK-ZWB20300 |
20 |
300 |
150 |
|
DK-ZWB20350 |
20 |
350 |
150 |
|
DK-ZWB20400 |
20 |
400 |
150 |
|
DK-ZWB20450 |
20 |
450 |
150 |
|
DK-ZWB20500 |
20 |
500 |
150 |
DKLINE PIG TAIL EYE BOLT
FAQ:
1.What is the MOQ?
There are no MOQ limit in first order, and 100pcs in further.
2.Samples providing?
We are providing the samples by free, but need pay for the freight charge.
3.EPC material design and provide in lot?
Yes, we are supplying for LV and MV EPC material in lot many years.and have strong design team.
4.OEM available?
Yes, we are providing the anchor clamp as custom requirement.
5.Complete documents for tender?
Yes, whole set documents ready for submit.
DKLINE HOOK EYE BOLT
ADVANTAGE:
1.Full set quality control plan to confirm the quality;
2.ISO 9001, ISO 14001 and ISO 18001 factor;
3.Low cost low price.
4.Quick response, fast quotation.
5.Dependably after-sale service.
6.Full set documents to submit the tender.
