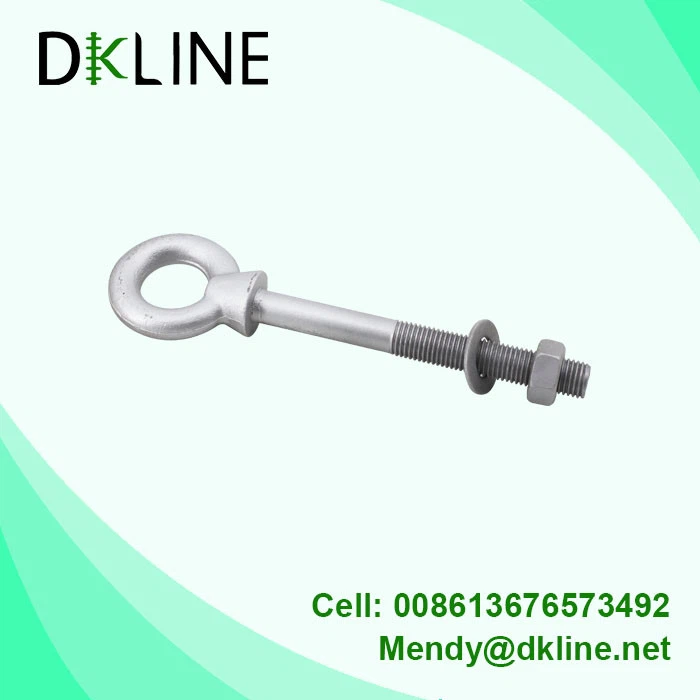

Shoulder Eye Bolt
DKLINE forged shoulder eye bolt is a type of fasteners with a forged eye,forged shoulder and thread rod.
The shoulder eye bolt usually used in the overhead transmission and distribution line for supporting dead end insulator, shackle, clevis, and thimbles.
The shoulder eye bolt have a shoulder with increased load area of utility pole or cross arm to reduce the stress in unit area to protect the utility pole or cross arm.
Description
DKLINE BOLT SHOULDER EYE
DESCRIPTION
The eye bolt used in electric power area usually used for supporting the dead end insulator, shackle, clevis and guy thimbles.
The classification of eye bolt include forged eye bolt, welding eye bolt in different production, oval eye bolt, regular eye bolt (round eye bolt without shoulder) and shoulder eye bolt in different shape.
DKLINE SHOULD EYE BOLT
FEATURES
■ Hot dip galvanizing according to international standard.
■ Cone point thread end
■ Integral forged
■ Smooth coating, easy to fasten a nut
■ Exact dimensions
■ Short lead time.
DKLINE SHOULDER EYE BOLT
TECHNICAL PARAMETERS
|
Material and Construction |
|
|
Body |
H.D.G steel |
|
Producing Capacity |
|
|
Producing Capacity |
50000pcs per month |
DKLINE SHOULDER EYE BOLT
DIMENSIONS:
|
Part No. |
Dimension(mm) |
|||||
|
D1 |
D2 |
L1 |
L2 |
L |
Φ |
|
|
DK-JDHK12/150 |
40 |
80 |
80 |
75 |
150 |
20 |
|
DK-JDHK12/200 |
40 |
80 |
80 |
100 |
200 |
20 |
|
DK-JDHK12/250 |
40 |
80 |
80 |
150 |
250 |
20 |
|
DK-JDHK12/300 |
40 |
80 |
80 |
150 |
300 |
20 |
|
DK-JDHK12/325 |
40 |
80 |
80 |
150 |
325 |
20 |
|
DK-JDHK16/150 |
40 |
80 |
80 |
75 |
150 |
20 |
|
DK-JDHK16/200 |
40 |
80 |
80 |
100 |
200 |
20 |
|
DK-JDHK16/250 |
40 |
80 |
80 |
150 |
250 |
20 |
|
DK-JDHK16/300 |
40 |
80 |
80 |
150 |
300 |
20 |
|
DK-JDHK16/350 |
40 |
80 |
80 |
150 |
350 |
20 |
|
DK-JDHK16/400 |
40 |
80 |
80 |
150 |
400 |
20 |
|
DK-JDHK16/450 |
40 |
80 |
80 |
150 |
450 |
20 |
|
DK-JDHK20/150 |
40 |
80 |
80 |
75 |
150 |
20 |
|
DK-JDHK20/200 |
40 |
80 |
80 |
100 |
200 |
20 |
|
DK-JDHK20/250 |
40 |
80 |
80 |
150 |
250 |
20 |
|
DK-JDHK20/300 |
40 |
80 |
80 |
150 |
300 |
20 |
|
DK-JDHK20/350 |
40 |
80 |
80 |
150 |
350 |
20 |
|
DK-JDHK20/400 |
40 |
80 |
80 |
150 |
400 |
20 |
|
DK-JDHK20/450 |
40 |
80 |
80 |
150 |
450 |
20 |
|
DK-JDHK20/480 |
40 |
80 |
80 |
150 |
580 |
20 |
|
DK-JDHK20/500 |
40 |
80 |
80 |
150 |
500 |
20 |
|
DK-JDHK20/550 |
40 |
80 |
80 |
150 |
550 |
20 |
DKLINE SHOULDER EYE BOLT
FAQ:
1. What is the MOQ?
There are no MOQ limit in first order, and 100pcs in further.
2. Samples providing?
We are providing the samples by free, but need pay for the freight charge.
3. EPC material design and provide in lot?
Yes, we are supplying for LV and MV EPC material in lot many years.and have strong design team.
4. OEM available?
Yes, we are providing the anchor clamp as custom requirement.
5. Complete documents for tender?
Yes, whole set documents ready for submit.
DKLINE SHOULDER EYE BOLT
ADVANTAGE:
1. Full set quality control plan to confirm the quality;
2. ISO 9001, ISO 14001 and ISO 18001 factor;
3. Low cost low price.
4. Quick response, fast quotation.
5. Dependably after-sale service.
6. Full set documents to submit the tender.
