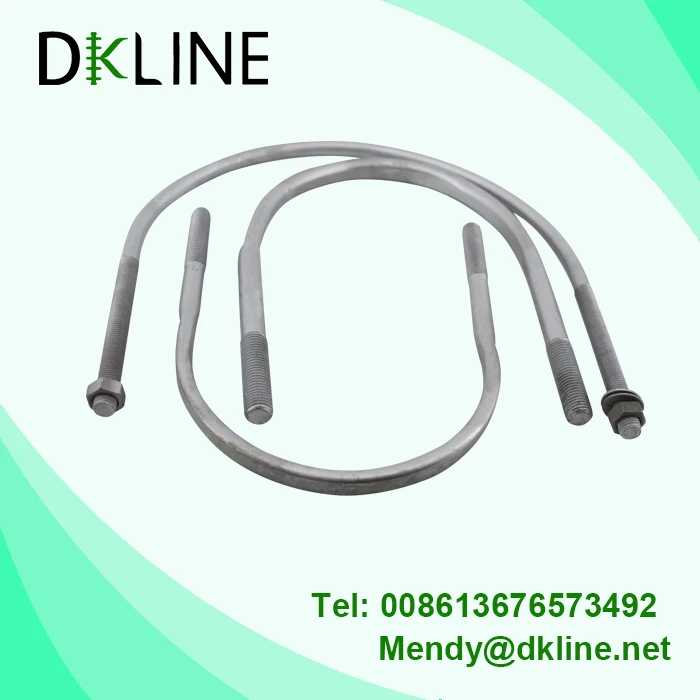

U Bolt

U-bolts are typically used to support pipework, tubing, round objects or to attach a part to a pole, beam or wall, where the “U” shape keeps it firmly in place, adding stability to the support. They are also used as framing fasteners and anchors for foundations and roofs, conduit holders and bolts for motor and engine shaft components. They may even be used to hang wrought iron pipe in mechanical installations or act as anchor bolts to be embedded in concrete.

Send Inquiry

Description

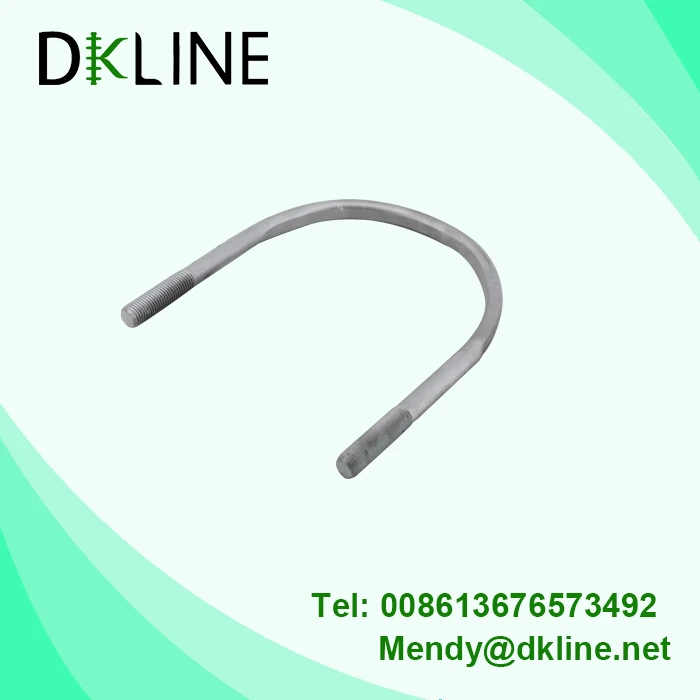

DKLINE U bolt

DESCRIPTION

bolts are metal rods bent into the shape of the letter “U” with screw threads at each end. The threaded ends are designed to be fastened by securing nuts and washers; they can also be used with a crosspiece/seat spanning both threaded ends of the bolt to make it more secure in certain settings and uses.

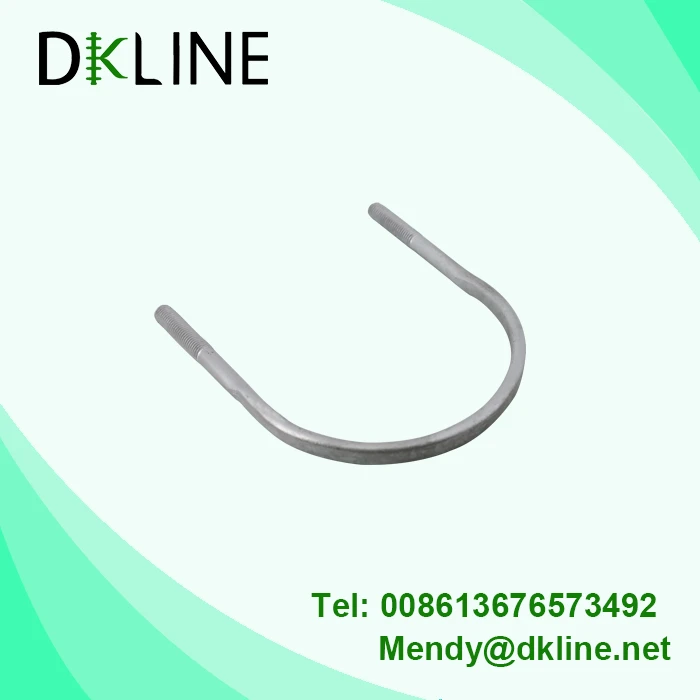

DKLINE U bolt

FEATURES

■ Corrosion resistant

■ Long life

DKLINE U bolt

TECHNICAL PARAMETERS

Material and Construction
Material	Hot-dip galvanizing

They are generally made of durable materials like plain carbon steel, mild steel (often plated with zinc for corrosion resistance), or corrosive resistance A2 / 304 or A4 / 316 stainless steel.

DKLINE U bolt

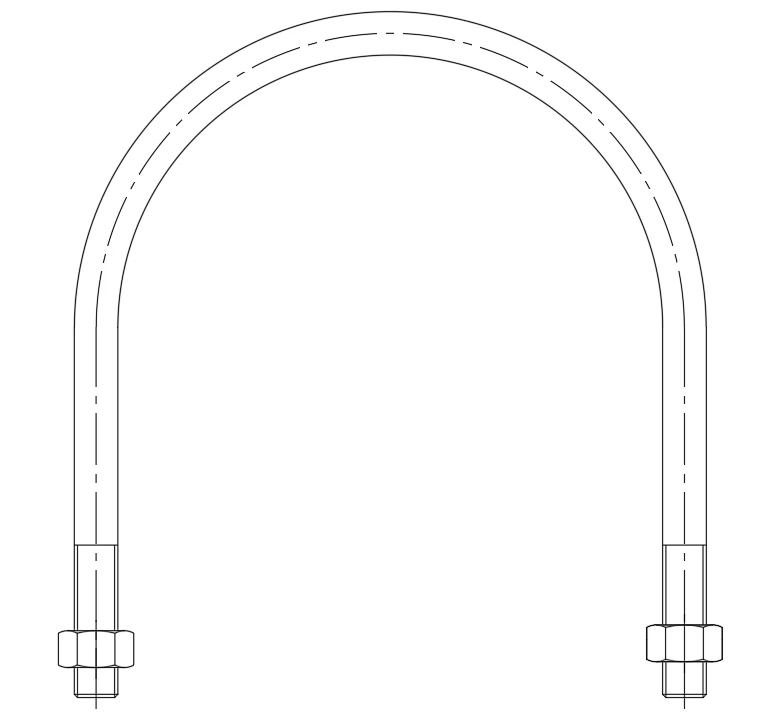

DIMENSION

product-770-728

SIZE	Internal Diameter	Internal Height	Thread Length
M6 x 1/2"	24	42	22
M6 x 3/4"	30	47	22
M6 x 1"	38	53	25
M6 x 1 1/4"	46	64	28
M6 x 1 1/2"	52	73	30
M6 x 2"	64	85	32
M6 x 2 1/2"	78	105	35
M6 x 3"	92	118	35
M6 x 4"	118	150	55
M8 x 1/2"	24	42	22
M8 x 3/4"	30	47	22
M8 x 1"	38	53	25
M8 x 1 1/4"	46	64	28
M8 x 1 1/2"	52	73	30
M8 x 2"	64	85	32
M8 x 2 1/2"	78	105	35
M8 x 3"	92	118	35
M8 x 4"	118	150	55
M10 x 3/8"	18	35	22
M10 x 1/2"	24	42	25
M10 x 3/4"	30	47	25
M10 x 1"	38	60	30
M10 x 1 1/4"	46	66	32
M10 x 1 1/2"	52	73	35
M10 x 2"	64	85	35
M10 x 2 1/2"	78	105	35
M10 x 3"	92	118	35
M10 x 3 1/2"	105	130	50
M10 x 4"	118	157	55
M10 x 5"	144	175	65
M10 x 6"	174	210	65
M10 x 8"	224	260	75
M12 x 1 1/2"	52	73	30
M12 x 2"	64	85	32
M12 x 2 1/2"	78	110	35
M12 x 3"	92	118	50
M12 x 4"	118	150	55
M12 x 5"	144	175	65
M12 x 6"	174	210	65
M12 x 8"	224	260	75
M12 x 10"	278	320	80
M12 x 12"	332	380	90
M16 x 4"	118	157	65
M16 x 5"	144	175	65
M16 x 6"	174	210	65
M16 x 7"	196	240	65
M16 x 8"	224	260	75
M16 x 10"	278	320	80
M20 x 8"	224	260	75
M20 x 9"	247	290	80
M20 x 10"	280	320	80
M20 x 12"	332	370	100
M22 x 10"	278	320	80
M22 x 12"	332	370	100
M24 x 10"	278	320	80
M24 x 12"	332	370	100
M24 x 14"	362	403	100
M24 x 16"	414	454	100
M30 x 18"	466	516	110
M30 x 20"	518	570	110
M30 x 22"	568	621	110
M36 x 24"	620	678	130
M36 x 26"	670	729	120
M36 x 28"	722	765	110
M36 x 30"	774	815	110
M42 x 32"	826	870	110
M42 x 36"	926	970	110
