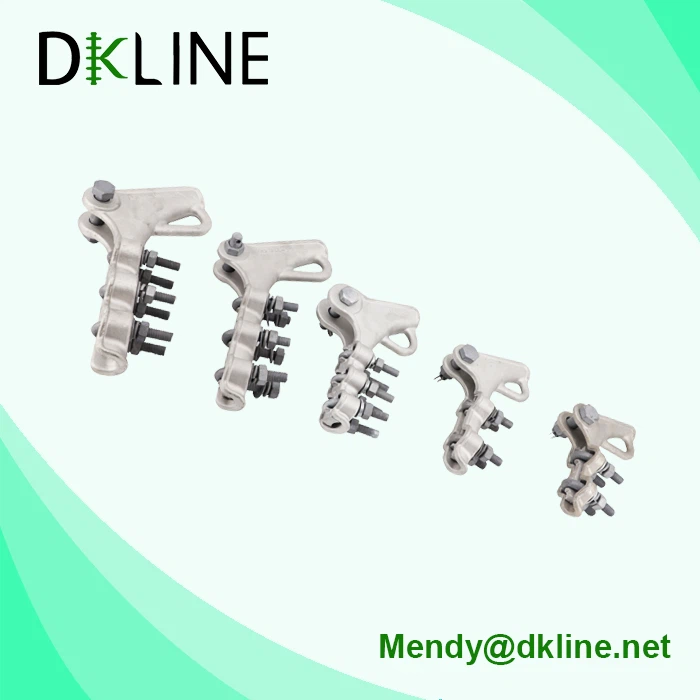

Tension Clamp NLL
Tension clamp is mainly used for overhead power line or substation fixed wire and lightning rod, and through the connection of gold and tensioning insulator string connection, mother of mother function, also used to fix the cable tower cable.
Description
DKLINE Series aluminium alloy tension clamp
DESCRIPTION
NLL series aluminium alloy strain clamp is suitable for aerial line up to 20kv,fixing aluminium wire of steel core aluminium wire on the strain pole,aerial insulation aluminium conductor and insulation aluminium cover are being used together.It’s cation is insulation protection.
1. The wire clip shall bear all the tension of the wire or lightning rod (cable) and the grip force of the wire clip shall not be less than 90% of the rated tension of the installation wire or lightning rod. However, bolt type and wedge type tensioning clip are not used as conductors.
2. Wire clip in addition to bear all the tension of wire or lightning rod, and as a conductor of compression type and hydraulic pressure and explosion of two kinds of tension clip.
3. The body and pressing block are aluminum alloy, which has energy-saving effect. The closing pin is stainless steel, and the rest are hot-dip galvanized steel.
DKLINE Series aluminium alloy tension clamp
FEATURES
■ Reliable quality
■ Good electrical conductivity
■ Easy installation
■ Strong and durable
DKLINE Series aluminium alloy tension clamp

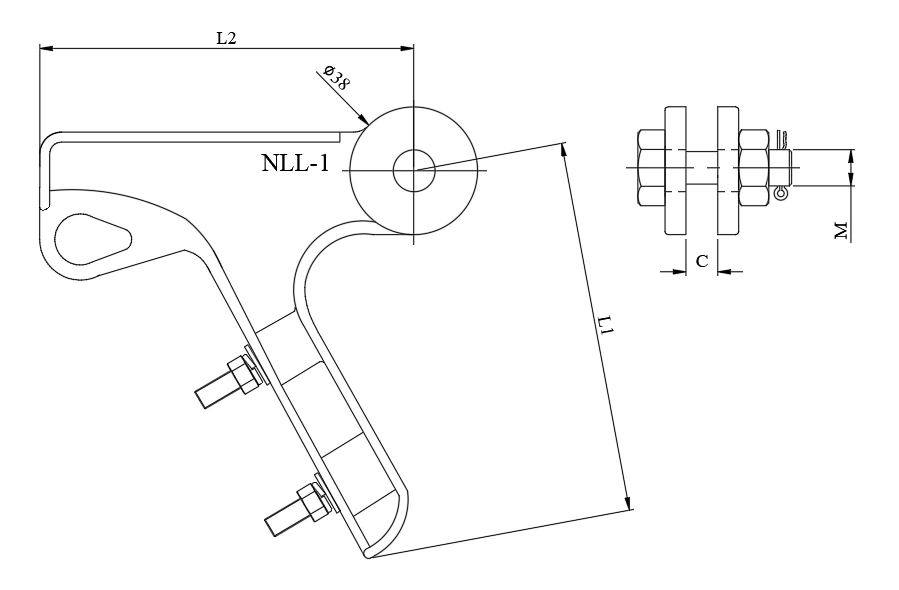

DIMENSION AND TECHNICAL PARAMETERS
|
Applicable wire diameter includes wrapping(mm) |
Dimension(mm) |
U-BOLT |
Failure load (KN) |
Weight （kg） |
|||||
|
L1 |
L2 |
C |
M |
number |
Dia |
||||
|

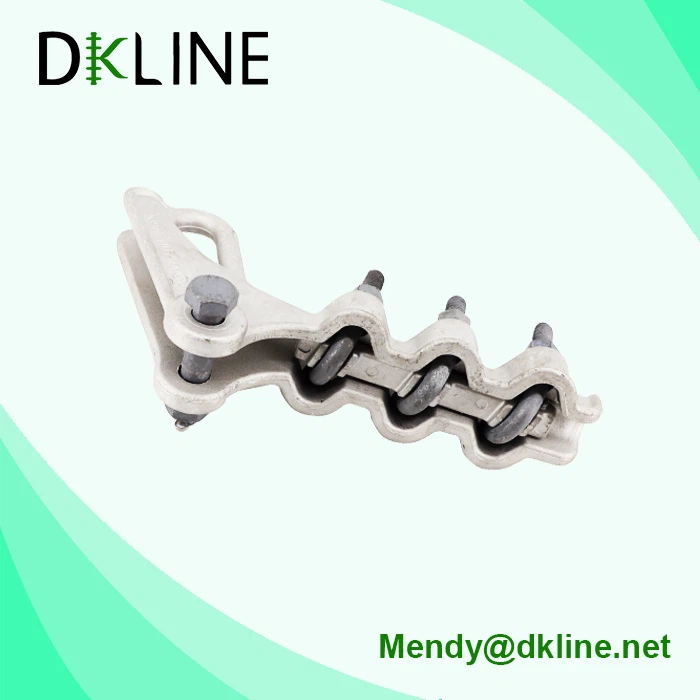

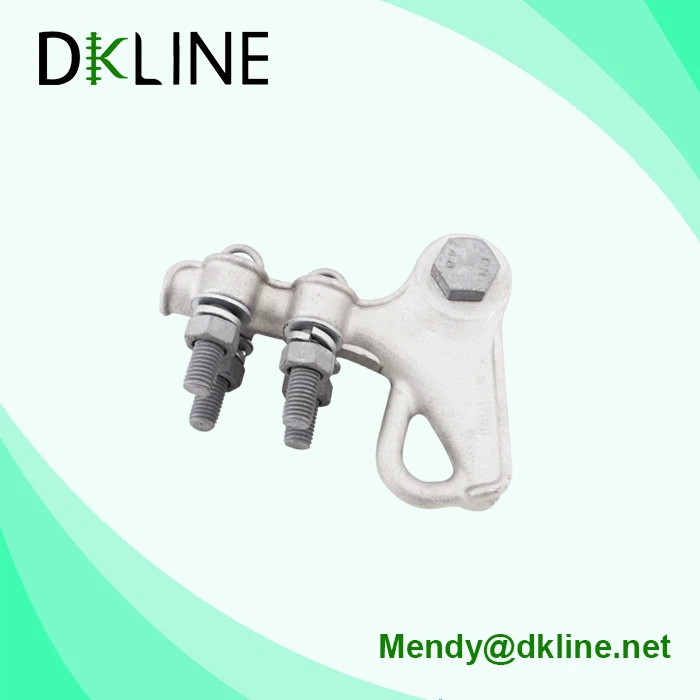

NLL-1 |
∅5.0-15.5 |
140 |
130 |
19 |
16 |
2 |
12 |
40 |
0.85 |
|

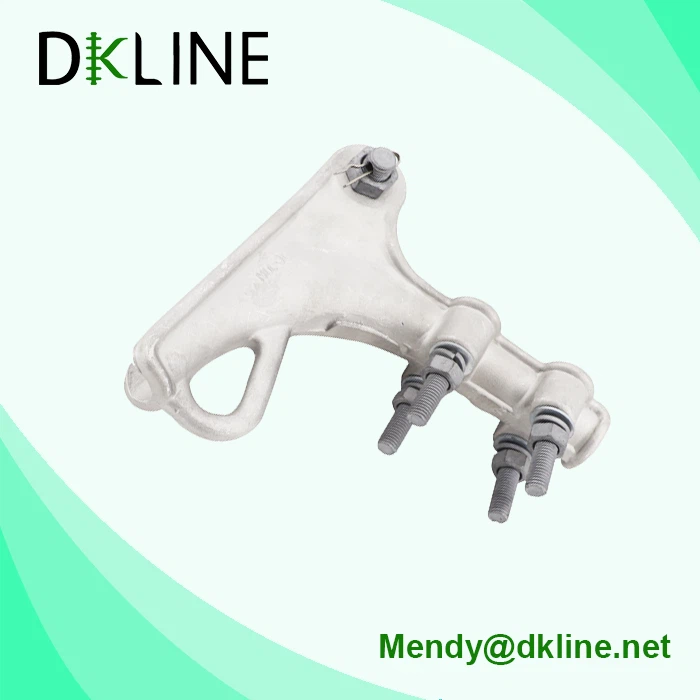

NLL-2 |
∅8.2-17.0 |
212 |
180 |
22 |
16 |
3 |
12 |
70 |
1.5 |
|
NLL-3 |
∅11.4-20.0 |
295 |
250 |
24 |
16 |
4 |
14 |
70 |
2.74 |
|

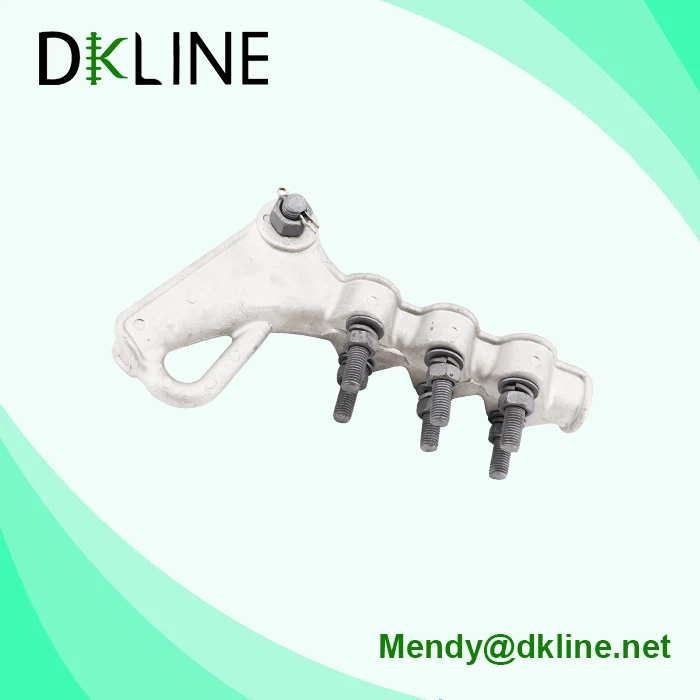

NLL-4 |
∅13.6-25.0 |
324 |
255 |
30 |
18 |
4 |
16 |
100 |
3.96 |
|

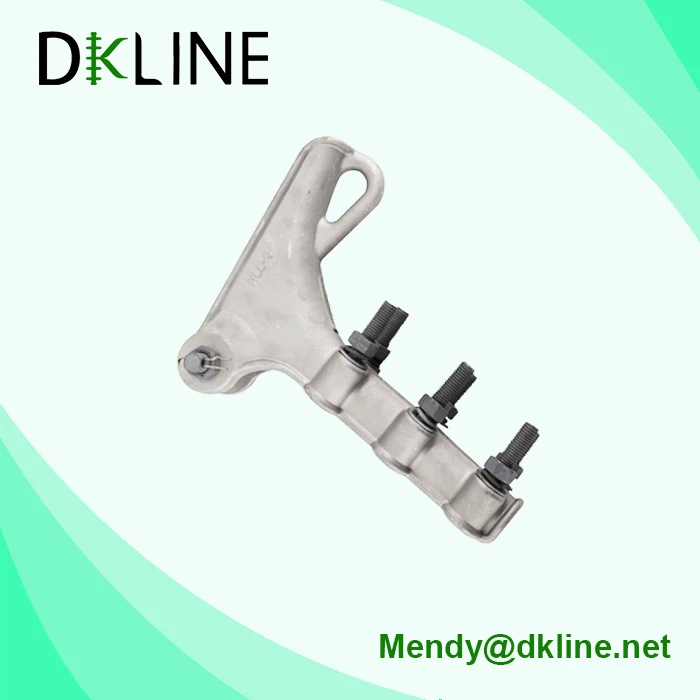

NLL-5 |
∅16.0-32.0 |
400 |
320 |
36 |
22 |
5 |
16 |
120 |
5.65 |
|
NLL-6 |
∅28.5-46.5 |
480 |
380 |
50 |
24 |
6 |
16 |
120 |
9.0 |
Other specifications can be asked by email
DKLINE Series aluminium alloy tension clamp
FAQ:
1.What is the MOQ?
There are no MOQ limit in first order, and 100pcs in further.
2.Samples providing?
We are providing the samples by free, but need pay for the freight charge.
3.EPC material design and provide in lot?
Yes, we are supplying for LV and MV EPC material in lot many years.and have strong design team.
4.OEM available?
Yes, we are providing the anchor clamp as custom requirement.
5.Complete documents for tender?
Yes, whole set documents ready for submit.
DKLINE Series aluminium alloy tension clamp
ADVANTAGE:
1.Full set quality control plan to confirm the quality;
2.Low cost low price.
3.Quick response, fast quotation.
4.Dependably after-sale service.
5.Full set documents to submit the tender.
