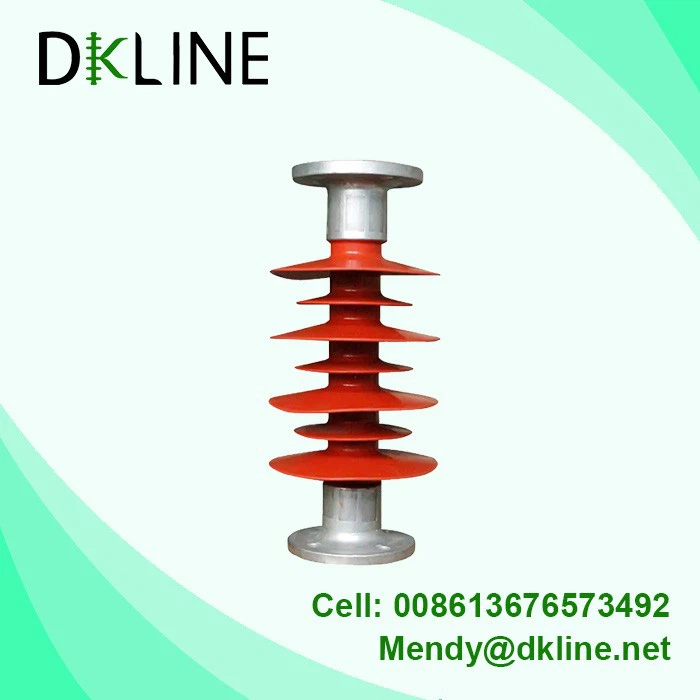

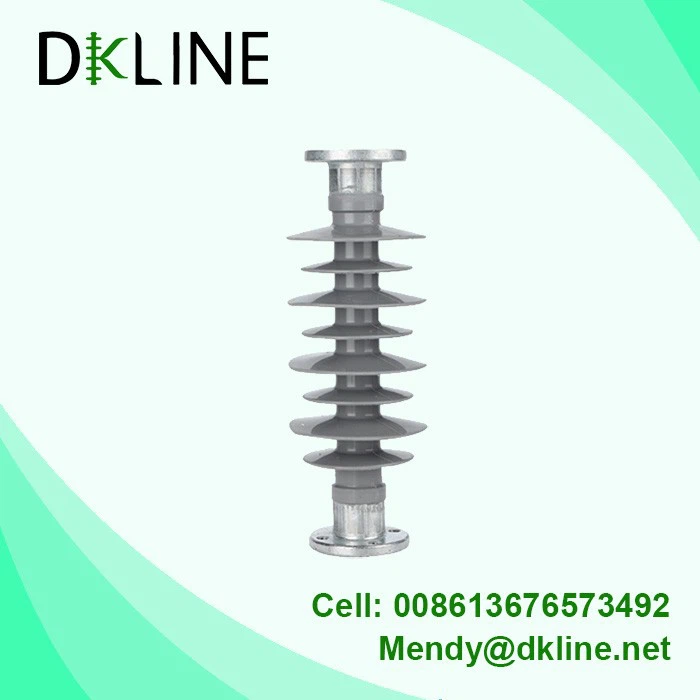

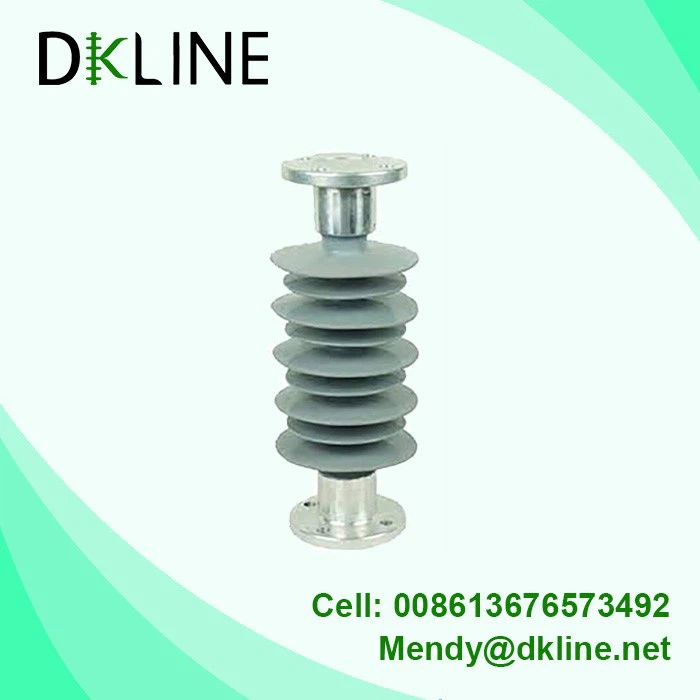

Post Composite Insulator
This product is applied to high voltage power line service.And have features of good hydrophobicity, anti-ageing,anti-leakage trace and electric erode proof,tensile strength and bending strength,strong mechanical strength,shock resistance good quake proof and brittle failure proof,light weight,easy to installation,and the in stallation size of top and base are the same size with porcelain pin type, they can exchange to use each other.
Description
DKLINE Post composite insulator
DESCRIPTION
Composite Line Post Insulator, Silicone Rubber Line Post Insulator, Polymer Line Post Insulator Usage:
Used for distribution and high voltage transmission line, applicable for heavy pollution areas
System Voltage: 11kV, 33kV, 66kV(69kV), 132kV, 245kV
Specified Cantilever Load (SCL): 1-20 kN
Color: Brown, Gray, or Customer's requirement
Applicable Standard: IEC, ANSI, CAN, BS, AS, IS or Customer requirement
DKLINE Post composite insulator
FEATURES
■ Light weight, small size, easy for transportation and installation
■ High mechanical strength
■ Super performance for anti-pollution
■ Low maintenance cost
DKLINE Post composite insulator
TECHNICAL PARAMETERS
|
Model |
Rated voltage |
Rated mechanical bending load(KN) |
Structure height H.(mm) |
Insulating distance Li.(mm) |
Min Creepage distance (mm) |
Diameter of shed D.(mm) |
Lightning impulse withstand voltage (peak)(kV) |
P.F. withstand voltage (virtual value) (kV) |
|
FZSW-10/4 |
10 |
4 |
215 |
125 |
290 |
100/90 |
75 |
42 |
|
FZSW-24/8 |
24 |
8 |
300 |
220 |
750 |
133/93 |
150 |
65 |
|
FZSW-35/6 |
35 |
6 |
450 |
360 |
946 |
148/118 |
185 |
95 |
|
FZSW-66/6 |
66 |
6 |
760 |
630 |
1886 |
160/130 |
410 |
185 |
|
FZSW-66/10 |
66 |
10 |
760 |
630 |
2010 |
220/190 |
410 |
185 |
|
FZSW-110/10 |
110 |
10 |
1220 |
1080 |
3530 |
220/190 |
500 |
230 |
|
FZSW-220/8 |
220 |
8 |
2440 |
2200 |
7060 |
220/190 |
1000 |
395 |
DKLINE Post composite insulator
FAQ:
1.What is the MOQ?
There are no MOQ limit in first order, and 100pcs in further.
2.Samples providing?
We are providing the samples by free, but need pay for the freight charge.
3.EPC material design and provide in lot?
Yes, we are supplying for LV and MV EPC material in lot many years.and have strong design team.
4.Complete documents for tender?
Yes, whole set documents ready for submit.
DKLINE Post composite insulator
ADVANTAGE:
Full set quality control plan to confirm the quality.
ISO 9001, ISO 14001 and ISO 18001 factor.
Low cost low price.
Quick response, fast quotation.
Dependably after-sale service.
Full set documents to submit the tender.
