11kV Air Break Switch
The air break switches install in outdoor and mainly use for switching and isolation. The air break switch is mostly installed in the distribution network as a switching point. It interrupts the small excitation current of a transmission line or the capacitance charging current. The maximum voltage for the switches is up to 35kV. The air-break switches are classified into two types. They are Single-Pole Air-Break Switch and the Gang Operated Air-Break Switch The (H)GW series outdoor Air/Load breaker switch is a three-phase AC 50Hz /60Hz outdoor medium-voltage switchgear, which can open and close the power line and can see the obvious disconnect distance. Application voltage levels include 12kV, 24kV and 36kV.
Description
DKLINE 11kV Air break switch
DESCRIPTION
The （H）GW-11/400（630） outdoor air break switch is suitable for the distribution network with the nominal voltage 11kV, the rated current 400（600）A and the rated frequency 50/60Hz, By operating the manual rocker mechanism, the isolation switch can be opened and closed.
DKLINE 11kV Air break switch
Environmental Conditions
Height above sea level：≤3000m
Air temperature： -40℃～+50℃
Maximum diurnal temperature difference：≤25℃
Relative humidity：Daily mean 95%
monthly average 90%
Maximum wind speed：≤34m/s
Earthquake intensity：＜8 degree
Icing thickness： ＜10mm
Thickness of snow： ＜35mm
irradiance： ＜0.1W/cm2
Pollution grade：Ⅱ class
Installation site：No fire disaster, explosion danger, chemical corrosion and frequent strenuous vibration places
DKLINE 11kV Air break switch
Main technical parameters of the product
|
Parameter name |
unit |
technical requirement |
|
Rated Voltage |
kV |
11 |
|
Rated continuous Current |
A |
400（630） |
|
Rated Frequency |
Hz |
50/60 |
|
Creepage distance |
mm |
≥420 |
|
Rated short circuit withstand current |
kA |
25 |
|
Rated short circuit making current(peak) |
kA |
40 |
|
Rated withstand current(peak) |
kA |
40 |
|
Mechanism life |
times |
1000 |
|
Lightning impulse withstand level |
||
|
Phase-Earth |
kV |
60 |
|
Across interupter |
kV |
75 |
|
1min Power frequency withstand voltage |
||
|
Phase-Earth |
kV |
30 |
|
Across interupter |
kV |
48 |
DKLINE 11kV Air break switch

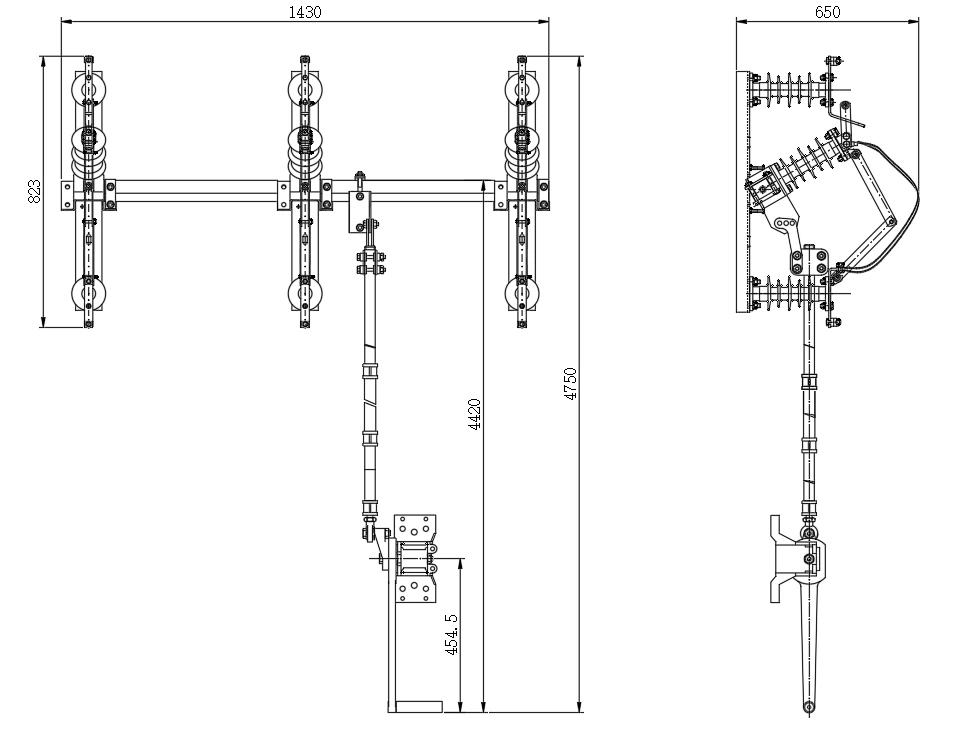

DIMENSION
DKLINE 11kV Air break switch
FAQ:
What is the MOQ?
There are no MOQ limit in first order, and 100pcs in further.
EPC material design and provide in lot?
Yes, we are supplying for LV and MV EPC material in lot many years.and have strong design team.
OEM available?
Yes, we are providing the anchor clamp as custom requirement.
Complete documents for tender?
Yes, whole set documents ready for submit.
DKLINE 11kV Air break switch
ADVANTAGE:
Full set quality control plan to confirm the quality;
ISO 9001, ISO 14001 and ISO 18001 factor;
Low cost low price.
Quick response, fast quotation.
Dependably after-sale service.
Full set documents to submit the tender.
