Double Arming Bolts
Double Arming Bolts are used for mounting hardware on wood structures and to tie cross arms together while maintaining correct spacing.They are equipped with square or hex nuts for pole mounting double cross arms and other hardware items. Lock nuts are recommended for use on end of all bolts to hold the nuts firmly in place underall conditions.
Description
Double Arming Bolts are used for mounting hardware on wood structures and to tie cross arms together while maintaining correct spacing.They are equipped with square or hex nuts for pole mounting double cross arms and other hardware items. Lock nuts are recommended for use on end of all bolts to hold the nuts firmly in place underall conditions.
Producing capacity: 1000000pcs/month
DKLINE Double arming bolts
DESCRIPTION
Standard DA bolts feature a full threaded bolt, for use between double cross arms. With four nuts, two sandwiching each arm, it can effectively maintain spacing.
Bolts are Hot Dip Galvanized for corrosion resistance. Thread is coarse thread to a class 2 fit Diameter, length (measured from the first thread on each end) and nuts desired are all necessary information toorder.
DKLINE Double arming bolts
FEATURES
■ Easy to use.
■ Corrosion resistant.
■ Good performance.
■ Professional technology support.
DKLINE Double arming bolts
TECHNICAL PARAMETERS
|
Material and Construction |
|
|
Material |
H.D.G steel |
|
Producing Capacity |
|
|
Producing Capacity |
1000000sets per month |
DKLINE Double arming bolts

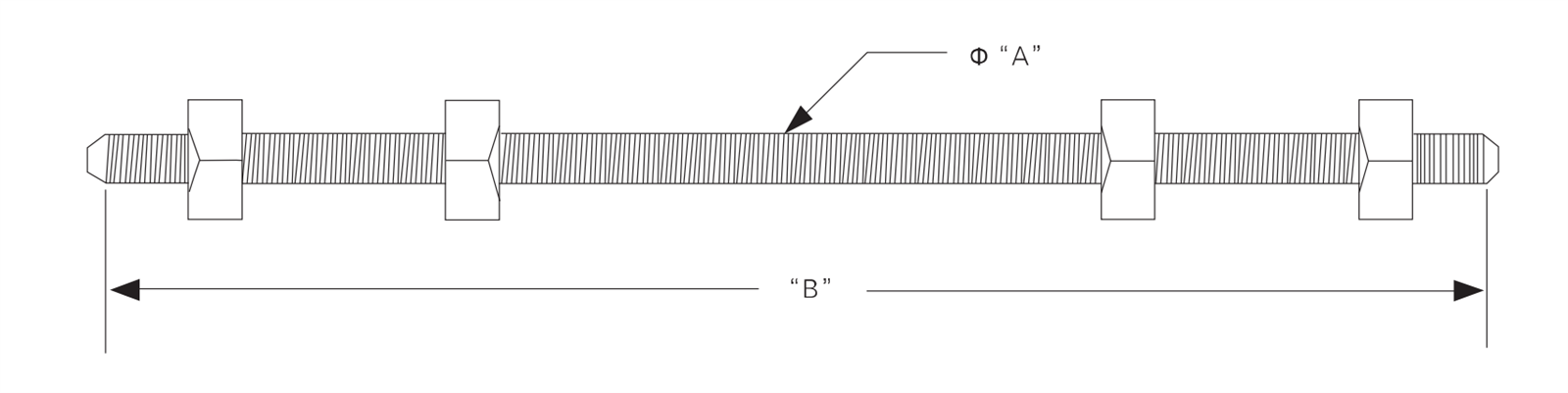

DIMENSION
|
Type |
A(Dia) |
B(L) |
|
DK1362 |
16 |
300 |
|
DK1364 |
16 |
350 |
|
DK1366 |
16 |
400 |
|
DK1368 |
16 |
450 |
|
DK1370 |
16 |
500 |
|
DK1372 |
16 |
550 |
|
DK1374 |
16 |
600 |
|
DK1376 |
16 |
650 |
|
DK1378 |
16 |
700 |
|
DK1380 |
16 |
750 |
|
DK1380-32 |
16 |
750 |
|
DK1380-34 |
16 |
800 |
|
DK1380-36 |
16 |
900 |
|
DK1380-38 |
16 |
950 |
|
DK1380-42 |
16 |
1050 |
|
DK1380-44 |
16 |
1115 |
|
DK1380-48 |
16 |
1200 |
|
DK1380-54 |
16 |
1370 |
|
DK1382 |
20 |
300 |
|
DK1384 |
20 |
350 |
|
DK1386 |
20 |
400 |
|
DK1388 |
20 |
450 |
|
DK1390 |
20 |
500 |
|
DK1392 |
20 |
550 |
|
DK1394 |
20 |
600 |
|
DK1396 |
20 |
650 |
|
DK1398 |
20 |
700 |
|
DK1340-30 |
20 |
750 |
|
DK1340-32 |
20 |
750 |
|
DK1340-34 |
20 |
800 |
|
DK1340-36 |
20 |
900 |
|
DK1340-38 |
20 |
950 |
|
DK1340-40 |
20 |
1000 |
|
DK1340-42 |
20 |
1050 |
|
DK1340-44 |
20 |
1115 |
|
DK1872 |
22 |
300 |
|
DK1874 |
22 |
350 |
|
DK1876 |
22 |
400 |
|
DK1878 |
22 |
450 |
|
DK1880 |
22 |
500 |
|
DK1882 |
22 |
550 |
|
DK1884 |
22 |
600 |
|
DK1886 |
22 |
650 |
|
DK1888 |
22 |
700 |
|
DK1890-32 |
22 |
750 |
|
DK1890-34 |
22 |
800 |
|
DK1890-36 |
22 |
900 |
|
DK1890-38 |
22 |
950 |
|
DK2409-18 |
25.4 |
450 |
|
DK2409-20 |
25.4 |
500 |
|
DK2409-22 |
25.4 |
550 |
|
DK2409-24 |
25.4 |
600 |
|
DK2409-26 |
25.4 |
650 |
|
DK2409-28 |
25.4 |
700 |
|
DK2409-32 |
25.4 |
750 |
|
DK2409-34 |
25.4 |
750 |
|
DK2409-36 |
25.4 |
800 |
|
DK2409-38 |
25.4 |
900 |
DKLINE Double arming bolts
FAQ:
What is the MOQ?
There are no MOQ limit in first order, and 100pcs in further.
Samples providing?
We are providing the samples by free, but need pay for the freight charge.
EPC material design and provide in lot?
Yes, we are supplying for LV and MV EPC material in lot many years.and have strong design team.
OEM available?
Yes, we are providing the anchor clamp as custom requirement.
Complete documents for tender?
Yes, whole set documents ready for submit.
DKLINE Double arming bolts
ADVANTAGE:
Full set quality control plan to confirm the quality;
ISO 9001, ISO 14001 and ISO 18001 factor;
Low cost low price.
Quick response, fast quotation.
Dependably after-sale service.
Full set documents to submit the tender.
