P Clevis

Connecting fittings are used to connect insulators, overhanging wire clips, tensioning wire clips and protective fittings to form pendulous or tensioning string groups of fittings.

The parallel clevis is a connecting clevis used for overhead transmission line as link fittings. The link fittings are used for the connection and combination of insulators,suspension clamps,strain clamps and protective fittings,to form a suspension string or strain string.

Producing capacity: 1000000pcs/month





DKLINE P clevis

DESCRIPTION

The cotter pin of parallel clevis is stainless steel,the other parts are hot-dip galvanized steel.

There are many types of clevis in different shapes,which are used in transmission line.The parallel clevis can be customized according to the requirements of customers.



DKLINE P clevis

FEATURES

■ Easy to use.

■ Corrosion resistant.

■ Good performance.

■ Professional technology support.



DKLINE P clevis

TECHNICAL PARAMETERS

Material and Construction
Material	H.D.G steel
Producing Capacity
Producing Capacity	1000000sets per month



DKLINE P clevis

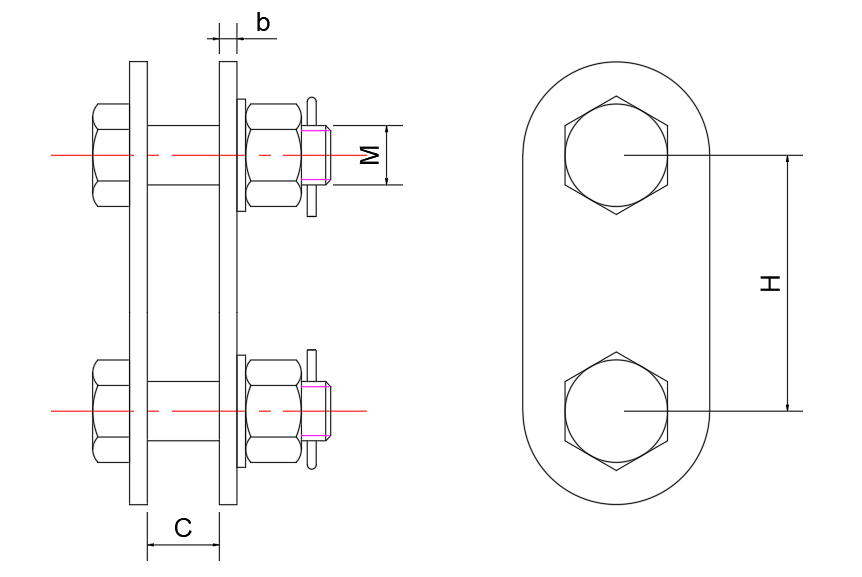

DIMENSION

Cat.No.	Dimension(mm)				Failure load KN	Weight kg
	b	C	M	H
P-7	6	18	16	0	70	0.6
P-10	8	20	18	80	100	0.85
P-12	10	24	22	90	120	1.52
P-16	12	26	24	100	160	2.42
P-1630	12	26	24	300	160	4.8
P-20	14	30	27	120	200	4.09
P-25	16	34	30	120	250	5.2
P-30	16	38	36	120	300	4.74
P-2018	14	30	27	180	200	5.1
P-2024	14	30	27	240	200	6
P-2030	14	30	27	300	200	6.9
P-2036	14	30	27	360	200	7.8
P-2042	14	30	27	420	200	8.7
P-2048	14	30	27	480	200	9.7
P-2054	14	30	27	540	200	10.6
P-3018	16	38	36	180	300	6
P-3024	16	38	36	240	300	7.3
P-3030	16	38	36	300	300	8.4
P-3036	16	38	36	360	300	9.0
P-3042	16	38	36	420	300	10.9
P-3048	10	38	36	480	300	12.1
P-3054	16	38	36	540	300	13.3
P-5012	18	40	42	120	500	11.2
P-5024	18	40	42	240	500	14.5
P-50	18	40	42	200	500	12.5



DKLINE P clevis

FAQ:

What is the MOQ?

There are no MOQ limit in first order, and 100pcs in further.



Samples providing?

We are providing the samples by free, but need pay for the freight charge.



EPC material design and provide in lot?

Yes, we are supplying for LV and MV EPC material in lot many years.and have strong design team.



OEM available?

Yes, we are providing the anchor clamp as custom requirement.



Complete documents for tender?

Yes, whole set documents ready for submit.



DKLINE P clevis

ADVANTAGE:

Full set quality control plan to confirm the quality;

ISO 9001, ISO 14001 and ISO 18001 factor;

Low cost low price.

Quick response, fast quotation.

Dependably after-sale service.

Full set documents to submit the tender.
