Adjustable Plate DB

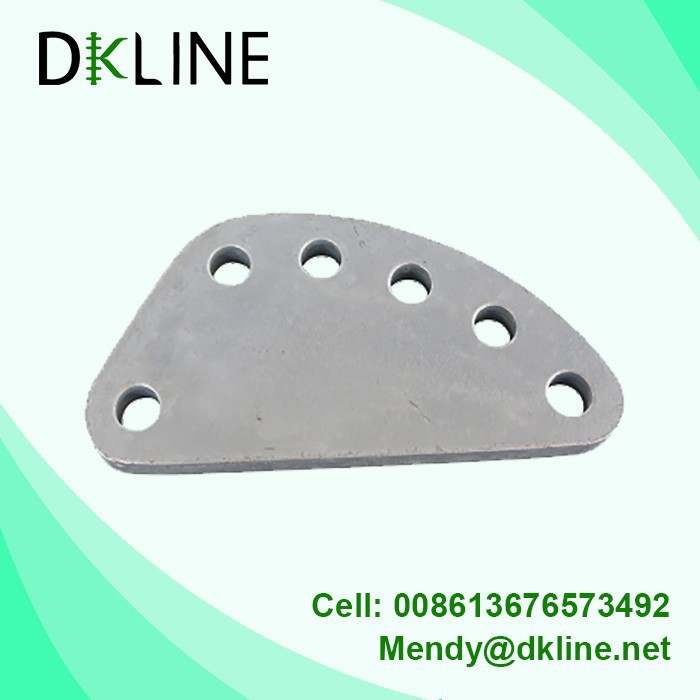

The adjustable plate is used for overhead power lines and substations to adjust the insulator string and wire length. The Adjusting Plate is made of hot-dip galvanized steel. The sizes can be designed according to requirements. Producing capacity: 100000pcs/month
Description
DKLINE Adjustable plate
DESCRIPTION
DB Adjustable Plate is a type of string hardware used for coupling the electrical clevis and the insulators or the socket tongue on the transmission line. During the yoke plate installation process, the insulators that are connected to the cross arm will be on one side and the conductor termination is on the other side. Yoke plates can be made of carbon steel, ductile iron, forged steel and aluminum alloy. When it comes to the construction, a yoke plate is usually made high-grade steel carbon. This material is relatively thick enough to give it enough strength. The tensile strength of the material shields it from breaking of undergoing structural damage. The powerline fitting is designed to have a high rated breaking strength(RBS). Still, in terms of the construction, the material for the yoke plate is hot dip galvanized. This coating protects against corrosion and rust. Water and chemicals that come into direct contact with the yoke plate won't cause any degradation. The surface of the yoke plate is smooth and does not have lumps. For the design, the most common shape of the yoke plate is the triangular yoke plate. This shape is considered universal as it can easily fit into a wide range of applications. However, there are other shapes for this overhead line accessory. You can find a rectangular yoke plate and even an irregularly-shaped yoke plate. So, when buying a yoke plate, you should specify the design or shape that you want. Of course, the choice of the shape will depend on your area of application. Yoke plates have grooves or holes through which connections are made. The diameters of these holes tend to vary. This means that you need to be more specific with the size of the holes that you want.
DKLINE Adjustable plate
FEATURES
■ Easy to use.
■ Corrosion resistant.
■ Durable.
DKLINE Adjustable plate
DIMENSION
|
Cat.No. |
Dimension(mm) |
Failure load (kN) (kN) |
Weight (kg) |
||||||
|
Φ |
L |
L1 |
L2 |
L3 |
L4 |
b |
|||
|
DB-7 |
18 |
70 |
95 |
120 |
145 |
170 |
16 |
70 |
1.7 |
|
DB-10 |
20 |
80 |
110 |
140 |
170 |
200 |
16 |
100 |
2.7 |
|
DB-12 |
24 |
100 |
135 |
170 |
205 |
240 |
16 |
120 |
3.2 |
|
DB-16 |
26 |
110 |
125 |
140 |
155 |
170 |
18 |
160 |
4.1 |
|
DB-20 |
30 |
120 |
135 |
150 |
165 |
180 |
26 |
200 |
7.4 |
|
DB-25 |
33 |
120 |
140 |
160 |
180 |
200 |
30 |
250 |
11.5 |
|
DB-30 |
39 |
120 |
140 |
160 |
180 |
200 |
32 |
300 |
12.5 |
|
DB-60 |
51 |
135 |
160 |
185 |
210 |
235 |
42 |
600 |
21.6 |
DKLINE Adjustable plate
FAQ:
1.What is the MOQ?
There are no MOQ limit in first order, and 100pcs in further.
2.Samples providing?
We are providing the samples by free, but need pay for the freight charge.
3.EPC material design and provide in lot?
Yes, we are supplying for LV and MV EPC material in lot many years.and have strong design team.
4.OEM available?
Yes, we are providing the anchor clamp as custom requirement.
5.Complete documents for tender?
Yes, whole set documents ready for submit.
DKLINE Adjustable plate
ADVANTAGE:
1.Full set quality control plan to confirm the quality;
2.ISO 9001, ISO 14001 and ISO 18001 factor;
3.Low cost low price.
4.Quick response, fast quotation.
5.Dependably after-sale service.
