Transformer Bracket

DKLINE TRANSFORMER BRACKET

DESCRIPTION

The DKLINE transformer pole mounted bracket used for mount the single phase transformer up to 167kVA to a utility pole with a diameter from 6” to 11”.

The transformer bracket component of bracket, band segment, full thread rod and nut, machine bolt, ground rod,horizontal adapter plate and vertical adapter plate. All of them hot dip galvanized according to standard of ASTM A153.

DKLINE TRANSFORMER MOUNTED BRACKET

FEATURES

■ Hot dip galvanizing according to international standard.

■ fast and easy installation

■ Long working life

■ Exact dimensions

■short lead time.

DKLINE SINGLE POSITION TRANSFORMER POLE MOUNTED BRACKET

TECHNICAL PARAMETERS

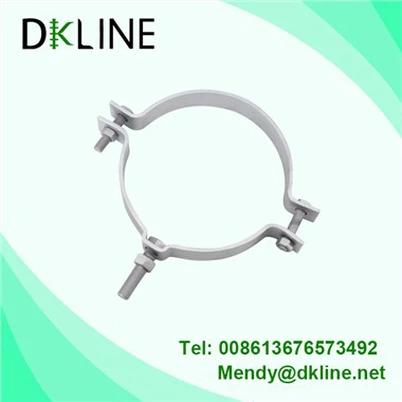

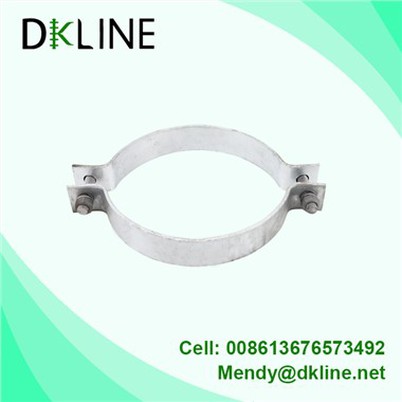

DKLINE DOUBLE MOUNTING POLE BAND

DKLINE 2 POSITION TRANSFORMER POLE MOUNTED BRACKET
FAQ:
1.What is the MOQ?
There are no MOQ limit in first order, and 100pcs in further.
2.Samples providing?
We are providing the samples by free, but need pay for the freight charge.
3.EPC material design and provide in lot?
Yes, we are supplying for LV and MV EPC material in lot many years.and have strong design team.
4.OEM available?
Yes, we are providing the anchor clamp as custom requirement.
5.Complete documents for tender?
Yes, whole set documents ready for submit.

DKLINE 3 POSITION TRANSFORMER POLE MOUNTED BRACKET
ADVANTAGE:
1.Full set quality control plan to confirm the quality;
2.ISO 9001, ISO 14001 and ISO 18001 factor;
3.Low cost low price.
4.Quick response, fast quotation.
5.Dependably after-sale service.
6.Full set documents to submit the tender.
