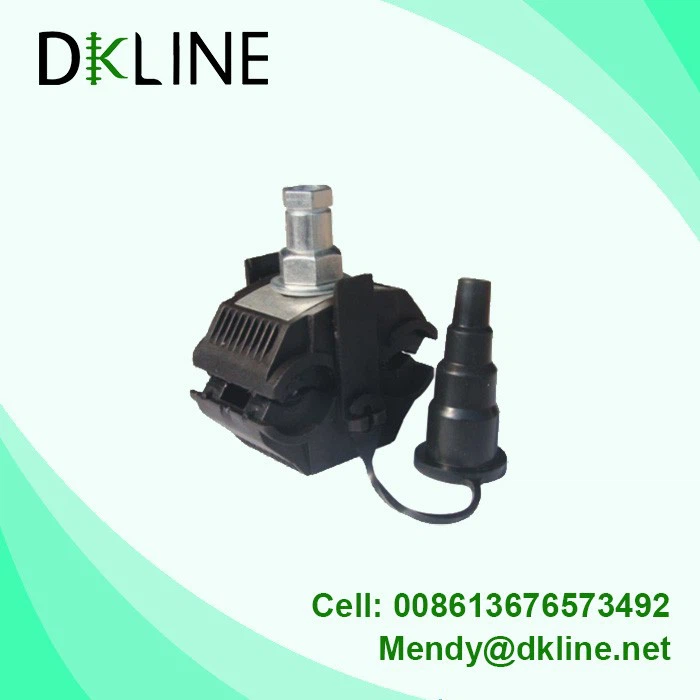

Insulation Piercing Connectors （VL）
These connectors are intended for ‘live’ jointing of service conductors on to LV mains cables of various types Designed for use with Copper and Aluminium conductors Range taking connectors for reduced inventory Shear head bolt ensures correct torque is reached every time
Description
DKLINE Insulation Piercing Connectors
DESCRIPTION
General of insulation piercing connector(lPC)
1. Piercing connector, simple installation, need not strip the cable coat.
2 .Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead
3. Self-seam frame,wetproof, waterproof, and anti-corrosion, extend the using life of insulated lead and connector
4. Adopted special connecting tablet, apply to joint of Cu(Al) and Cu(Al) or Cu and Al
5. Small electric connecting resistance, connecting resistance less than 1.1 times of the resistance of branch conductor with the
same length
6. Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 12KV
7. Arc surface design; apply to connection with the same (different) diameter, wide connection scope (0.75mm2-400mm2)
DKLINE Insulation Piercing Connectors
TECHNICAL PARAMETERS
|
Type |
Equivalent model |
Applicable conductor range |
Standard current |
Dimension |
Weight (G) |
Bolt.No. (pcs) |
|
|
Main line section(mm2) |
Branch line section(mm2) |
||||||
|

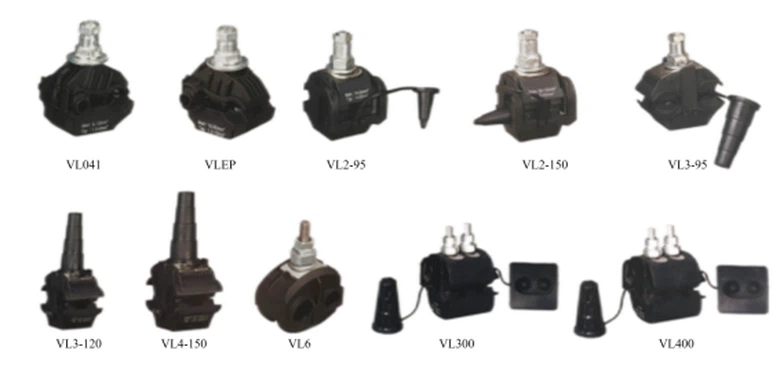

VL041 |
JJC-1 |
1.5-35 |
1.5-10 |
41 |
21x27x23 |
10 |
1 |
|
VLEP |
JJC-2 |
16-95 |
1.5-10 |
55 |
27x41x62 |
55 |
1 |
|
VL2-95 |
JJC-3 |
16-95 |
4-35(50) |
157 |
46x52x87 |
160 |
1 |
|
VL2-150 |
JJC-4 |
50-150 |
6-35(50) |
157 |
46x52x87 |
162 |
1 |
|
VL3-95 |
JJC-5 |
25-95 |
25-95 |
157 |
50x61x100 |
198 |
1 |
|
VL3-120 |
|
16-120 |
16-120 |
214 |
50x61x100 |
198 |
1 |
|
VL4-150 |
JJC-6 |
50-150 |
50-150 |
316 |
50x61x100 |
280 |
1 |
|
VL6 |
JJC-7 |
120-240 |
25-120 |
276 |
52x68x100 |
360 |
1 |
|
VL-7 |
|
150-240 |
10-25 |
102 |
52x68x100 |
336 |
1 |
|
VL240 |
JJC-8 |
95-240 |
95-240 |
425 |
83x130x130 |
1020 |
2 |
|
VL300 |
VL9 |
95-300 |
95-240 |
425 |
83x130x130 |
1040 |
2 |
|
VL400 |
VL9 |
120-400 |
95-240 |
425 |
83x130x130 |
1050 |
2 |
DKLINE Insulation Piercing Connectors
FAQ:
What is the MOQ?
There are no MOQ limit in first order, and 100pcs in further.
Samples providing?
We are providing the samples by free, but need pay for the freight charge.
EPC material design and provide in lot?
Yes, we are supplying for LV and MV EPC material in lot many years.and have strong design team.
OEM available?
Yes, we are providing the anchor clamp as custom requirement.
Complete documents for tender?
Yes, whole set documents ready for submit.
DKLINE Insulation Piercing Connectors
ADVANTAGE:
Full set quality control plan to confirm the quality;
ISO 9001, ISO 14001 and ISO 18001 factor;
Low cost low price.
Quick response, fast quotation.
Dependably after-sale service.
Full set documents to submit the tender.
